When choosing an operator for a commercial overhead door, a very important consideration is whether the door is balanced or unbalanced.

A balanced door uses one or more torsion springs to counterbalance the weight of the door. This reduces the lifting force required from the operator, potentially allowing a smaller motor to be used. But this convenience comes with drawbacks. Springs are typically the first component to fail in a balanced system. A high‑quality operator, like from the iControls’ PULSE line, runs for a million cycles or more, while commercial torsion springs may last only 25,000 cycles depending on their quality. As springs fatigue, the door gradually becomes unbalanced, increasing wear, reducing performance and requiring regular service.

Commercial and industrial doors can also be designed without torsion springs. These springless systems have fewer moving parts and are ideal for applications where torsion hardware is impractical, such as folding, sliding or high‑speed fabric doors. In a springless setup, there is no counterbalance to assist with lifting. The operator must supply all the torque, which means the quality and durability of the operator are critical. This is where the new PULSE 600 from iControls delivers meaningful advantages.

The PULSE 600 is significantly more powerful than a typical commercial operator. It features a direct-drive 180V DC brake motor available in 1 ½, 2, 2 ½ and 3 horsepower-rated options. Combined with a gearbox optimized for the specific application’s desired speed, the PULSE 600 is engineered to operate springless doors reliably all day, every day.

Precise RPM‑based speed control is another key advantage. Instead of subjective speed settings like 1–5, the PULSE 600 allows users to select the exact RPM required for optimal performance. Opening speed, closing speed and the slow-speed portions of the cycle (used for soft-start/soft-stop functionality) can all be programmed for smooth and consistent operation. The available RPM range is dependent on gearbox ratio.

Universal Input Voltage is one of the most innovative features of the PULSE 600. The operator automatically adapts to a facility’s voltage, from 208–600Vac for three‑phase power or 208–240Vac for single‑phase power. This eliminates the need for stocking multiple voltage‑specific models or adding a step‑down transformer, reducing complexity and cost for any project.

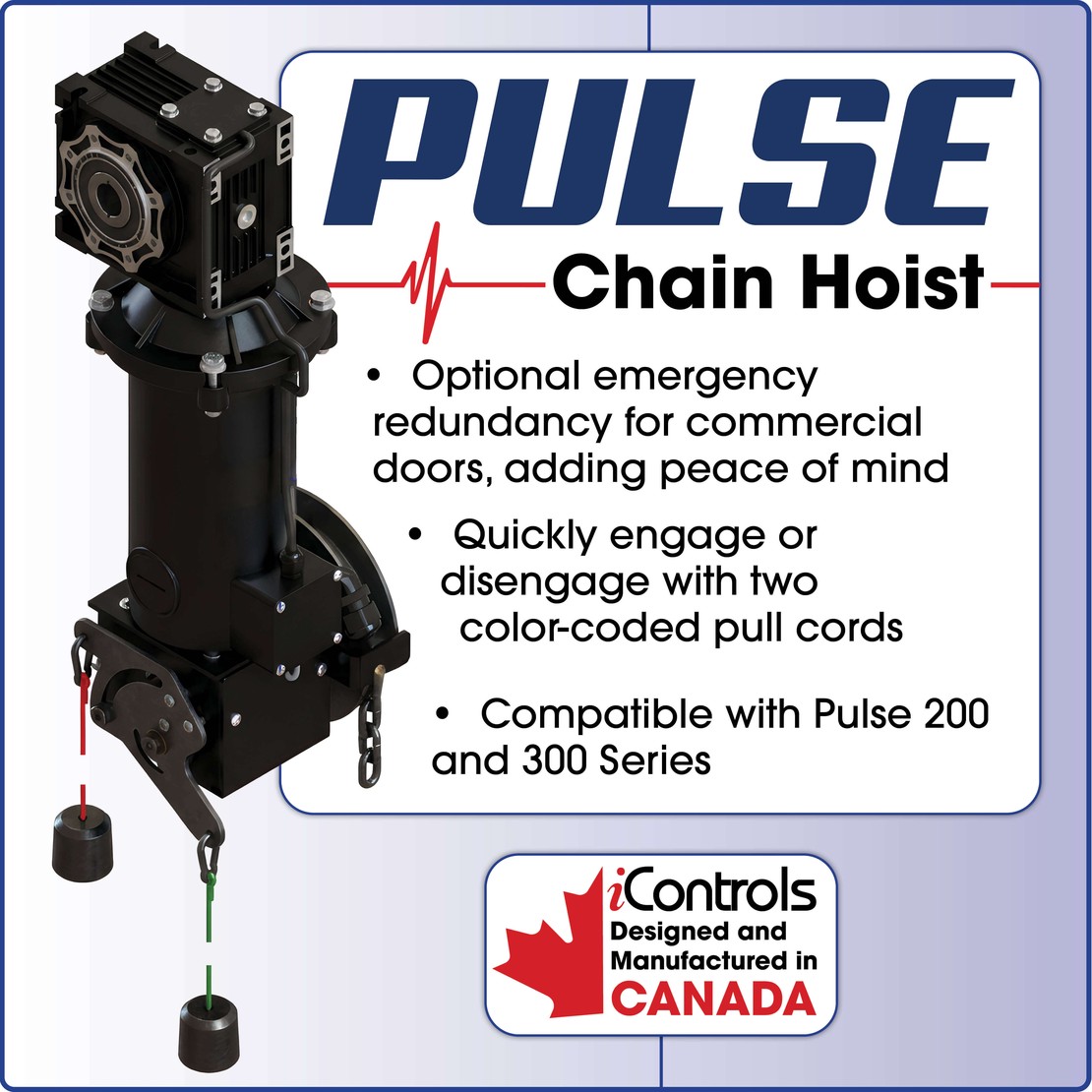

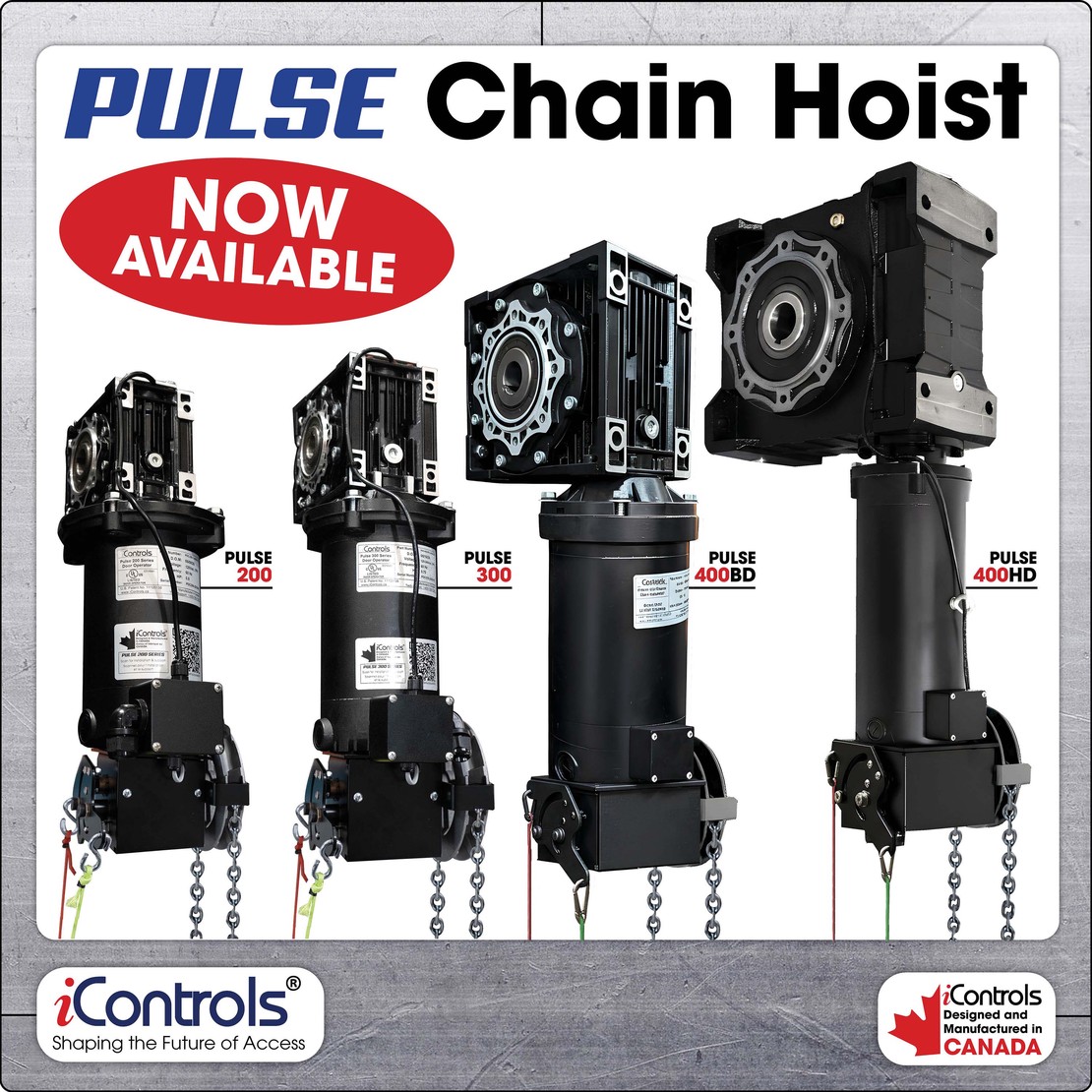

With springless doors, the two forces acting on the door are gravity and the motor. Every PULSE 600 model includes an electromechanical brake motor that ensures the door stops exactly when commanded, greatly enhancing safety. An optional chain hoist is available for all configurations to provide manual operation during a power interruption.

The PULSE 600 is easy to wire and setup thanks to its intuitive floor‑level LCD control panel. It also features an electronic fully‑open sensor that removes the need for physical limits.

For any speed springless application, the PULSE 600 is the operator you need for powerful, safe, and efficient performance. Explore the full specs of the PULSE 600 or browse the rest of our PULSE lineup.

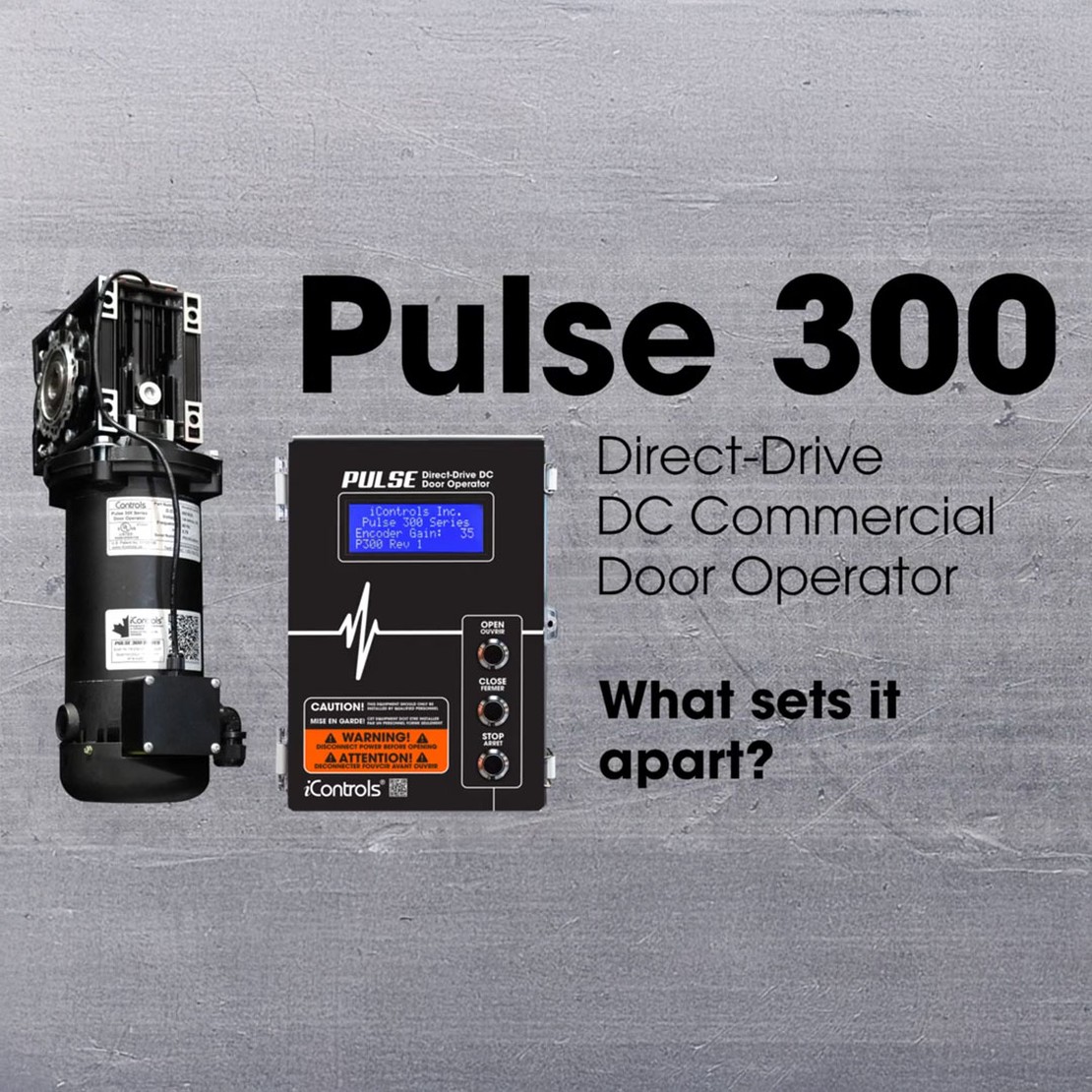

In every commercial or industrial building, door operators work to keep operations moving. Their performance must be fast, reliable, and dependable, no matter how demanding the environment.

The PULSE 300 from iControls is built to do exactly that. It opens commercial or industrial doors with ease, but it also delivers a range of behind-the-scenes features that make it truly stand out. It really is the strong, silent type.

The Strong … The 90V direct-drive motor is powerful and capable of lifting heavy doors. The PULSE 300 is available in three different horsepower-rated options (1/2 HP, 3/4 HP, and 1 HP). Integrated 24V battery backup comes standard, ensuring your facility keeps moving even during a power outage.

Its innovative design and programming allow the PULSE 300 to open a door fast, reaching opening speeds of up to 24 inches per second.

The operator is also engineered to perform all day, every day. With unlimited continuous-duty operation, the PULSE 300 doesn’t need a break. There’s no need to purchase an additional extended-duty package to benefit from this capability; it comes standard.

The Silent … The PULSE 300 is an exceptionally quiet operator. The DC motor runs whisper-quiet, and with no chains or sprockets to add noise. The simple, clutter-free design makes installation a breeze and reduces maintenance costs.

Behind the scenes, several other features make the PULSE 300 stand out. Intelligent load sensing is also standard, helping maintain worker safety in every scenario.

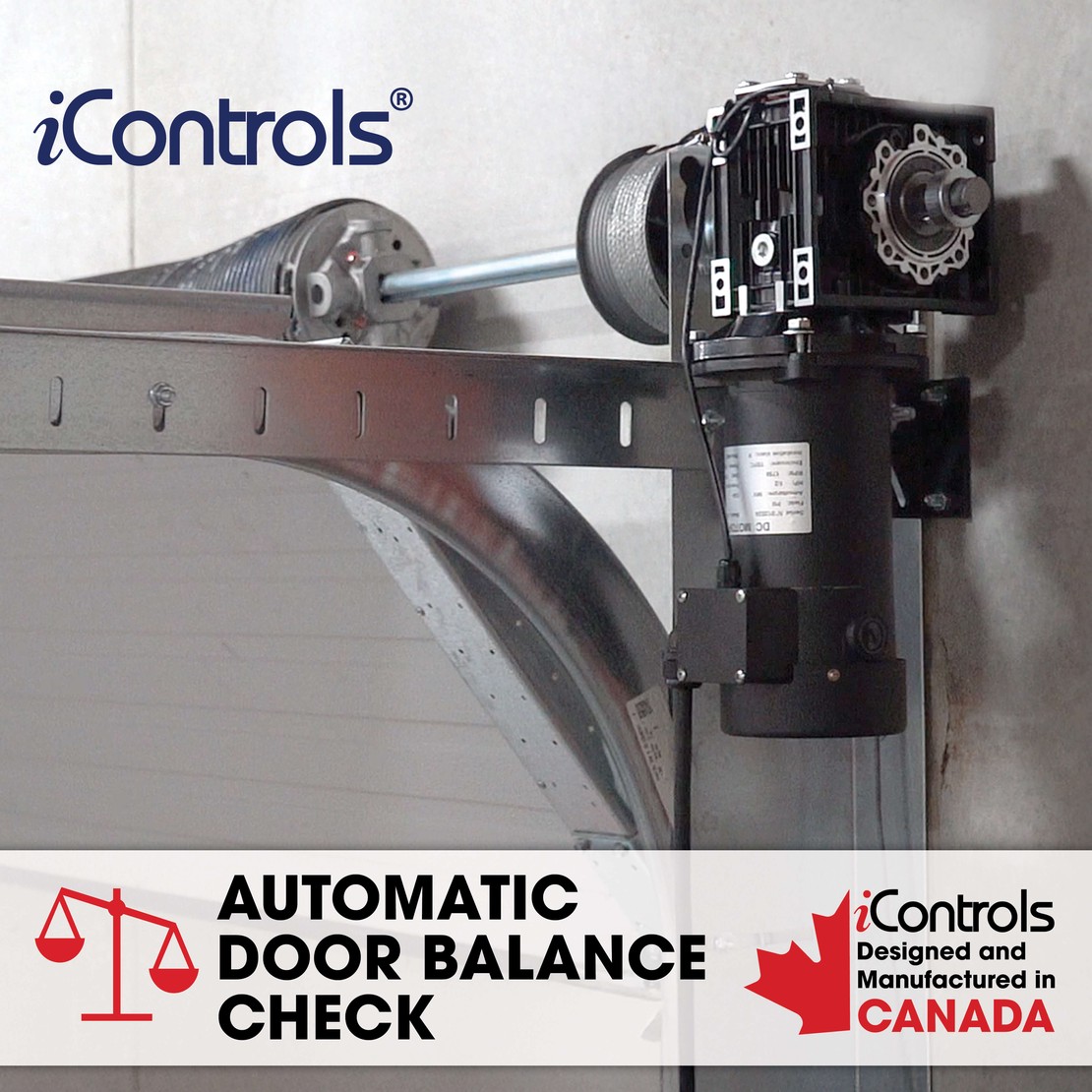

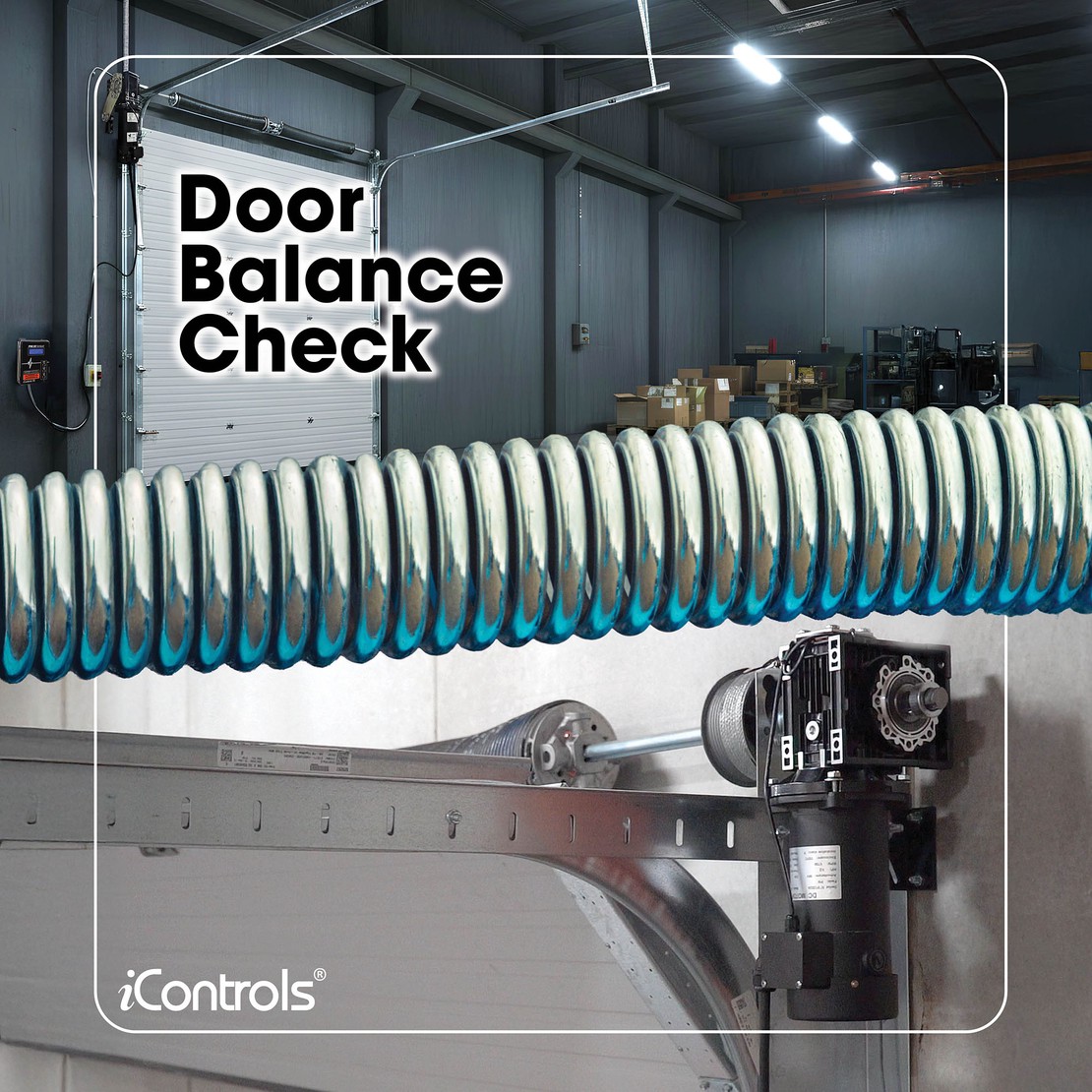

The PULSE 300 can verify that your door is properly balanced, improving the longevity of both the door and its torsion springs. Programmable soft start and soft stop functionality ensure a smooth cycle every time. During initial setup, the PULSE 300 can also be optimized for rolling steel doors.

The PULSE 300 is the operator you want when you need a no-nonsense solution that simply gets the job done. Explore the full specs of the PULSE 300 or browse the rest of our PULSE lineup.

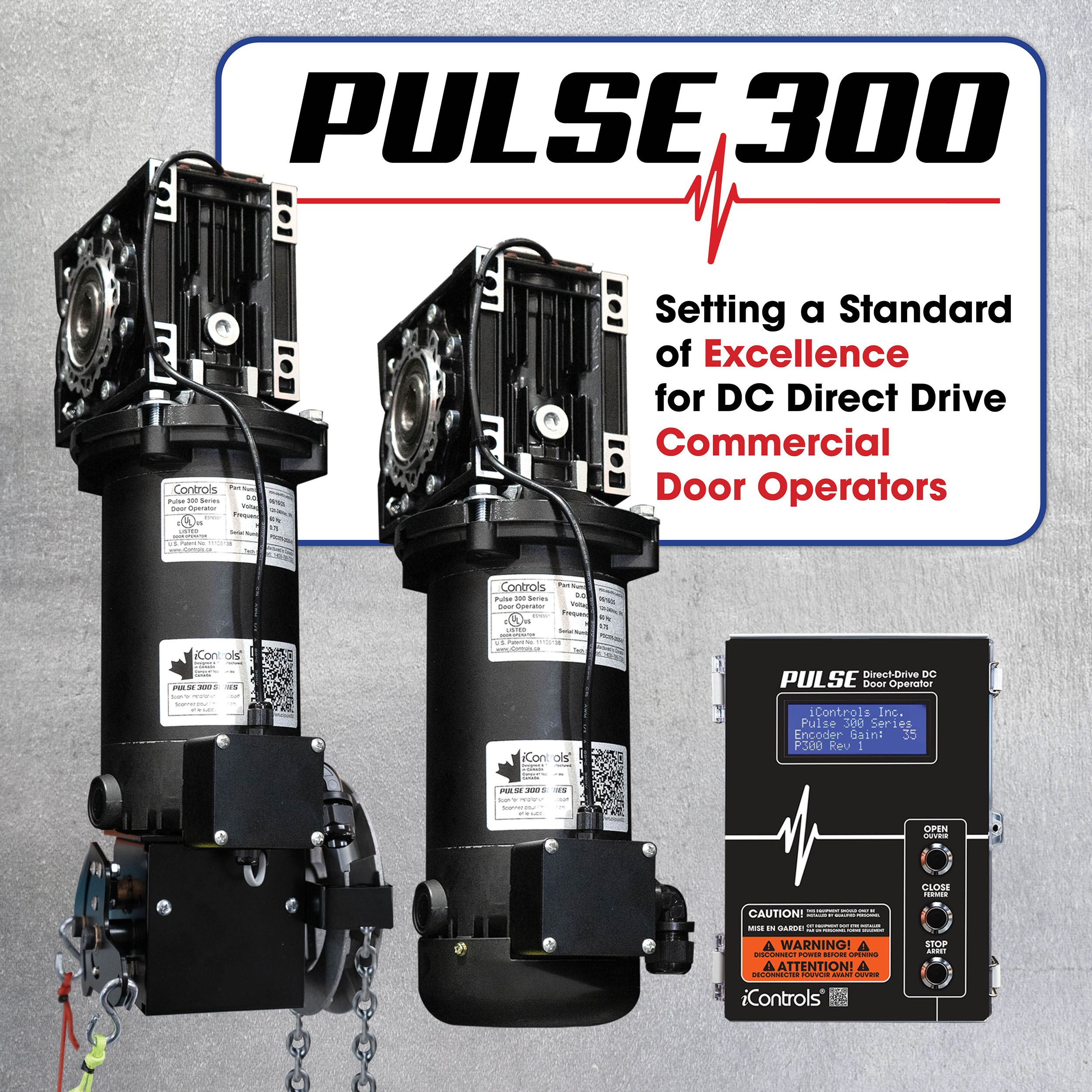

More than a decade of DC operator development and engineering has led to iControls’ flagship commercial door operator: the PULSE 300.

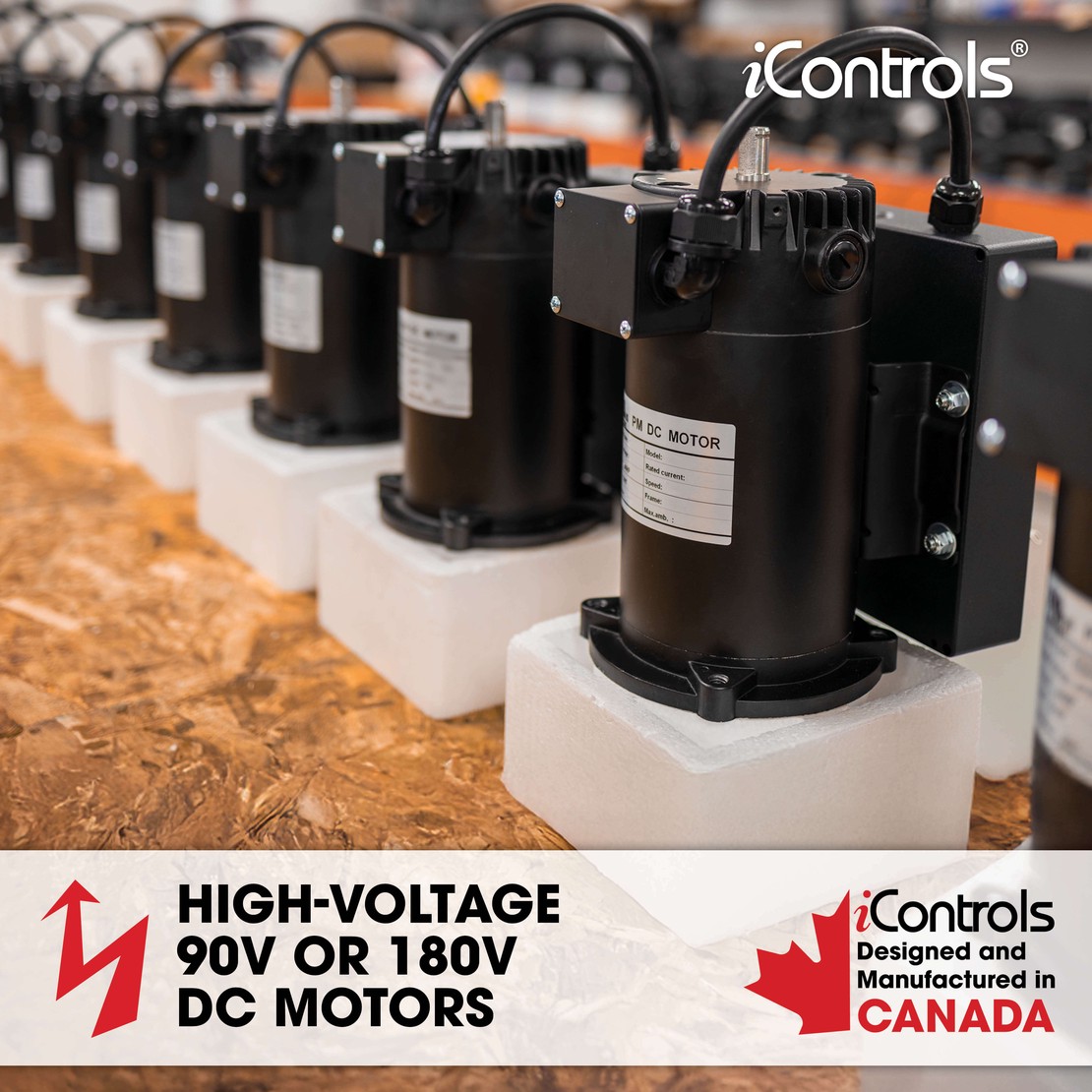

At its core is the 90V DC motor. This sleek, powerful motor delivers exceptional torque and speed.

The PULSE 300's motor is unlimited continuous duty as a standard feature, meaning it can run all day without the need to purchase any extended‑duty package.

The motor and gearbox combination features a clutter‑free design with minimal moving parts. There are no sprockets or chains to purchase or attach during installation, resulting in faster setup and fewer maintenance calls.

Integrated 24V battery backup is standard with all PULSE 300 models. When power is interrupted, the PULSE 300 operates the door at a reduced speed until service is restored. When the battery depletes, the system reverts to a push‑and‑hold setup.

Programmable speed is also standard with the PULSE 300. Users can set opening and closing speeds through the control panel. The operator can achieve opening speeds of up to 24 in/s and closing speeds of up to 16 in/s.

These are only a few of the features that make the PULSE 300 one of the most innovative commercial door operators on the market. Visit the PULSE 300 product page or browse the full PULSE commercial line.

iControls^® is pleased to announce that three-part CSI Architectural Specifications are now available for the PULSE 100, 200, and 300 commercial door operators. These documents give architects, door dealers, installers, and facility managers a clearer, more comprehensive resource for planning and executing commercial or industrial door projects with PULSE operators.

Consolidating all critical technical, safety, and installation requirements into a single standardized format, these specifications demonstrate why PULSE sets a new standard in commercial door operation.

The specifications detail each operator's core design, including its powerful 90V DC direct-drive motor and advanced control panel, along with the full array of innovative features built into the system. These specs also highlight the safety and reliability technologies that distinguish PULSE commercial door openers: an integrated 24V battery backup, intelligent force monitoring, a door balance check feature and a gearbox-mounted encoder that supports UL 325 compliance and meets modern safety expectations.

Visit the PULSE 100, PULSE 200, PULSE 300 product pages or the PULSE Support page, to download the specifications in Word or PDF format.

Updated September 17, 2026: This post has been revised to reflect the current PULSE lineup. Intelligent Force Monitoring is standard on the PULSE 100, 200, 300, and 500 Series.

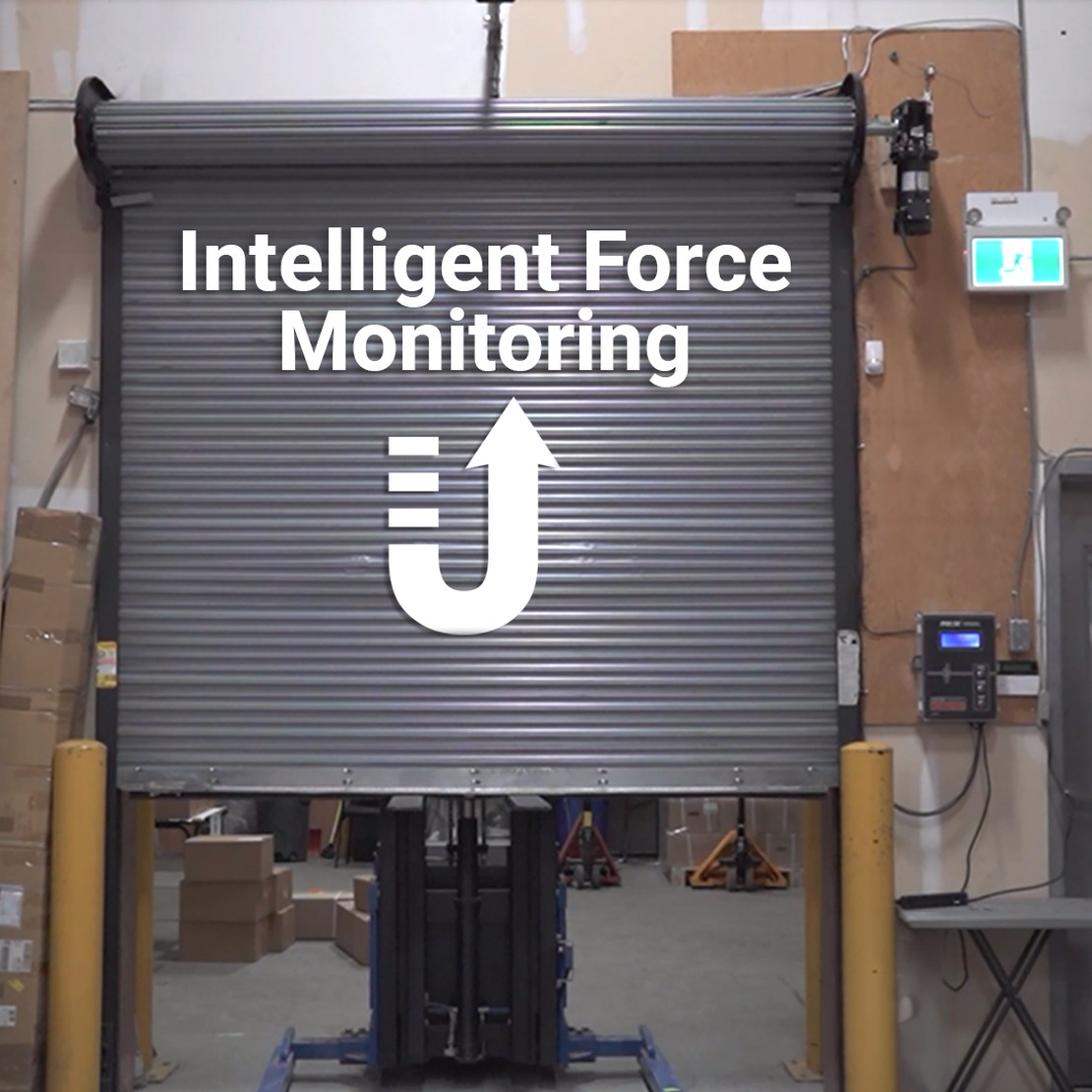

The PULSE 100, 200, 300, and 500 direct‑drive DC commercial door operators, designed for balanced doors, come standard with Intelligent Force Monitoring, a core safety feature engineered to protect both equipment and personnel.

In the featured video, you’ll see how the system responds the moment a door encounters an obstruction. The operator instantly detects the change in force, stops movement, and automatically reverses the door to the fully open position.

This proactive safety response helps prevent damage, reduces downtime, and enhances overall facility protection — reinforcing why PULSE operators are trusted across commercial and industrial environments.

The upcoming PULSE 600 direct-drive DC commercial door operator is engineered specifically for springless high-speed fabric and rubber doors.
