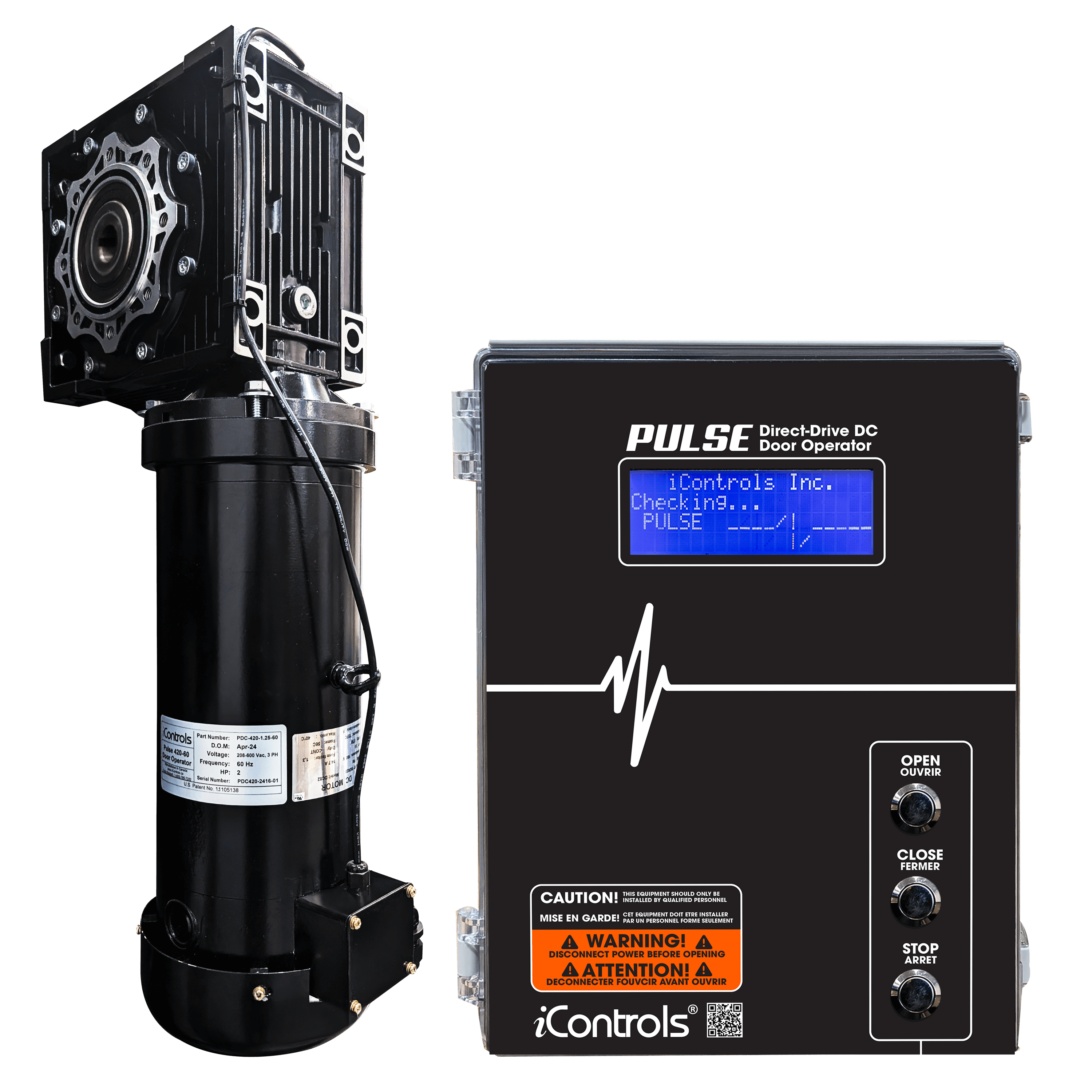

PULSE 400HD Heavy-Duty Commercial Door Opener

PULSE 400HD Series

Heavy-Duty Commercial Door Operator

The PULSE 400HD commercial door opener is designed for large, heavy-duty springless applications such as sectional, rolling steel or folding doors.

Contact Sales

Features

Perfect for Heavy-Duty Springless Applications

The PULSE 400HD is designed to work seamlessly with large, heavy-duty springless applications such as sectional, rolling steel or folding doors.

Perfect for Heavy-Duty Springless Applications

The PULSE 400HD is designed to work seamlessly with large, heavy-duty springless applications such as sectional, rolling steel or folding doors.

Works Globally, Right Out of the Box

The PULSE 400HD is our most versatile model yet. It’s designed to accept universal input voltage from 208V to 600V AC, 1Ph or 3Ph right out of the box for global compatibility. There’s no need for a step-down transformer or any additional configuration to achieve the required voltage.

Works Globally, Right Out of the Box

Output RPM Control

Program the RPM for the gearbox output of the open cycle and close cycle for constant door speeds that suit your installation. With its speed detecting encoder, the PULSE 400HD accommodates for the input voltage and provides reliable speed control throughout the operation, even if the voltages should fluctuate.

Output RPM Control

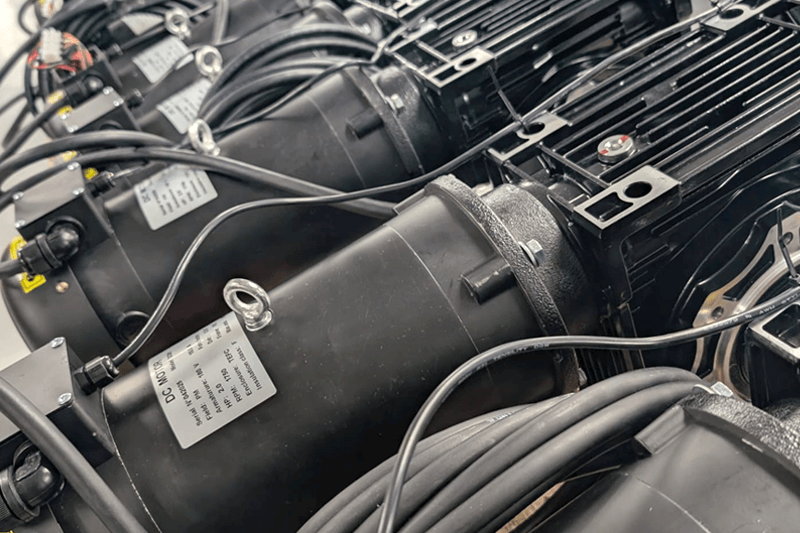

High Power DC Motors

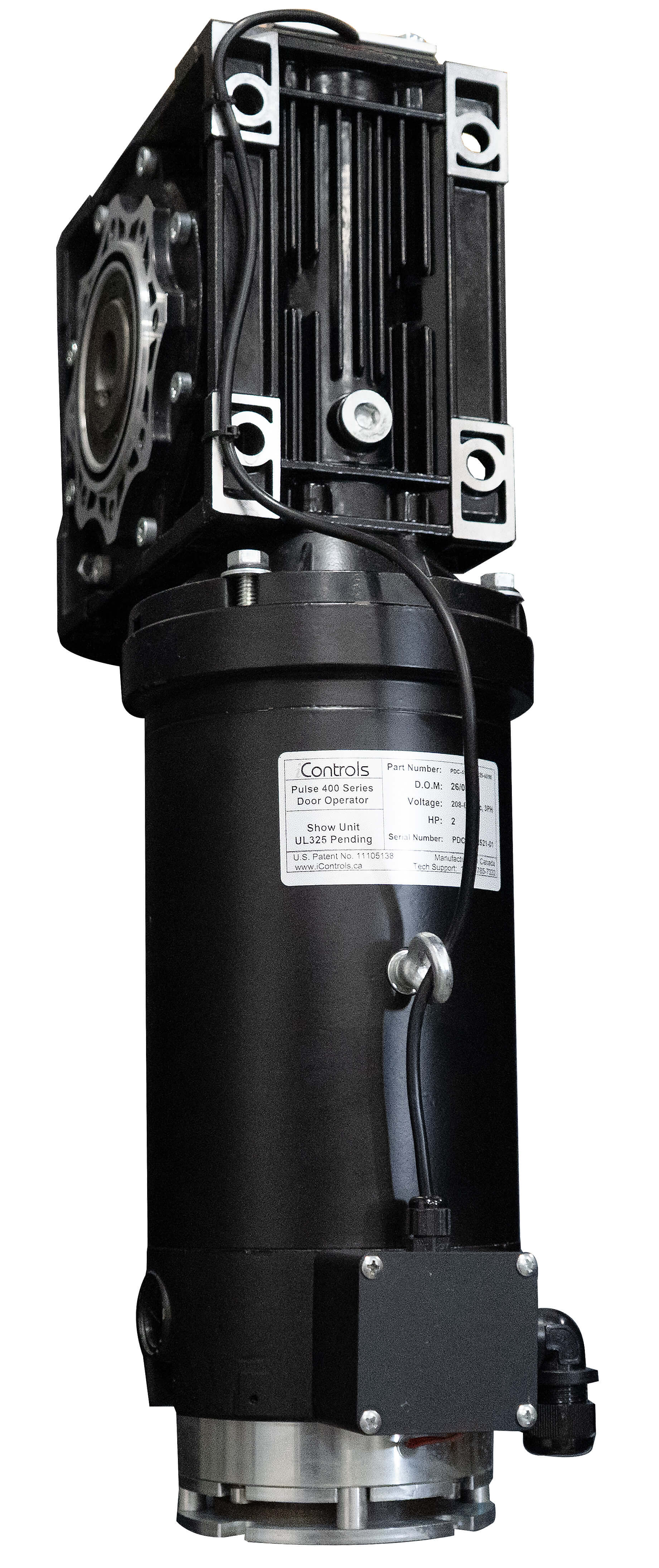

Each unit is equipped with 180V DC motors rated at 2 HP or 3 HP, paired with gearboxes in a variety of sizes and ratios.

High Power DC Motors

Each unit is equipped with 180V DC motors rated at 2 HP or 3 HP, paired with gearboxes in a variety of sizes and ratios.

Adjustable Soft Start/Soft Stop

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

Adjustable Soft Start/Soft Stop

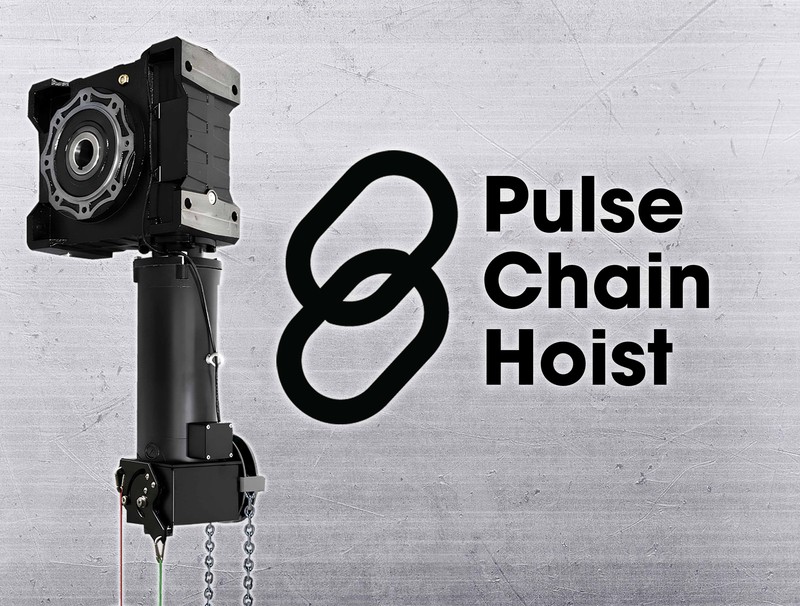

Chain Hoist Option

The PULSE chain hoist adds enhanced reliability by ensuring manual operation during extended power outages. Simple to use, it engages with a red cord and disengages with a green cord. It prevents downtime, protects operations, and delivers peace of mind for businesses needing uninterrupted performance.

A 26-foot chain is supplied for a 12.5-foot high standard lift door, with 13 feet of rope provided to engage and disengage the chain hoist. If more chain and rope are required, additional 26-foot kits are available to order.

Please contact us to order an extra chain kit or for any other custom accommodations. To order, add the "-CH" suffix to the door operator model number.

Learn more in the PULSE chain hoist installation guide.

Chain Hoist Option

Please contact us to order an extra chain kit or for any other custom accommodations. To order, add the "-CH" suffix to the door operator model number.

Learn more in the PULSE chain hoist installation guide.

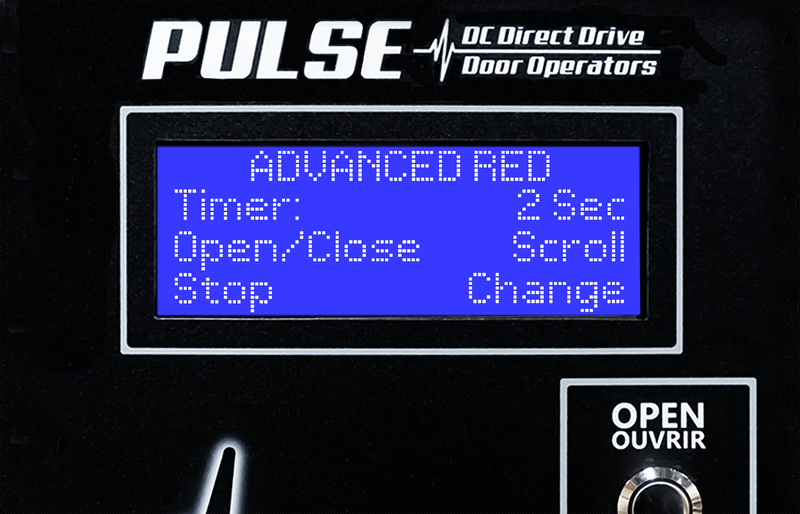

Programmable Closing Timer

This feature allows to automatically close the door after a selectable delay of 1 to 99 seconds.

Programmable Closing Timer

This feature allows to automatically close the door after a selectable delay of 1 to 99 seconds.

Door Close Warning

When the closing timer is active, the red LED light flashes on your Stop & Go traffic light before the door closes. Programmable from 1 to 9 seconds, use this safety feature as an early warning for your workers. Best used with iControls^® TL Series LED Stop & Go traffic lights.

Door Close Warning

Weather-Protect Option

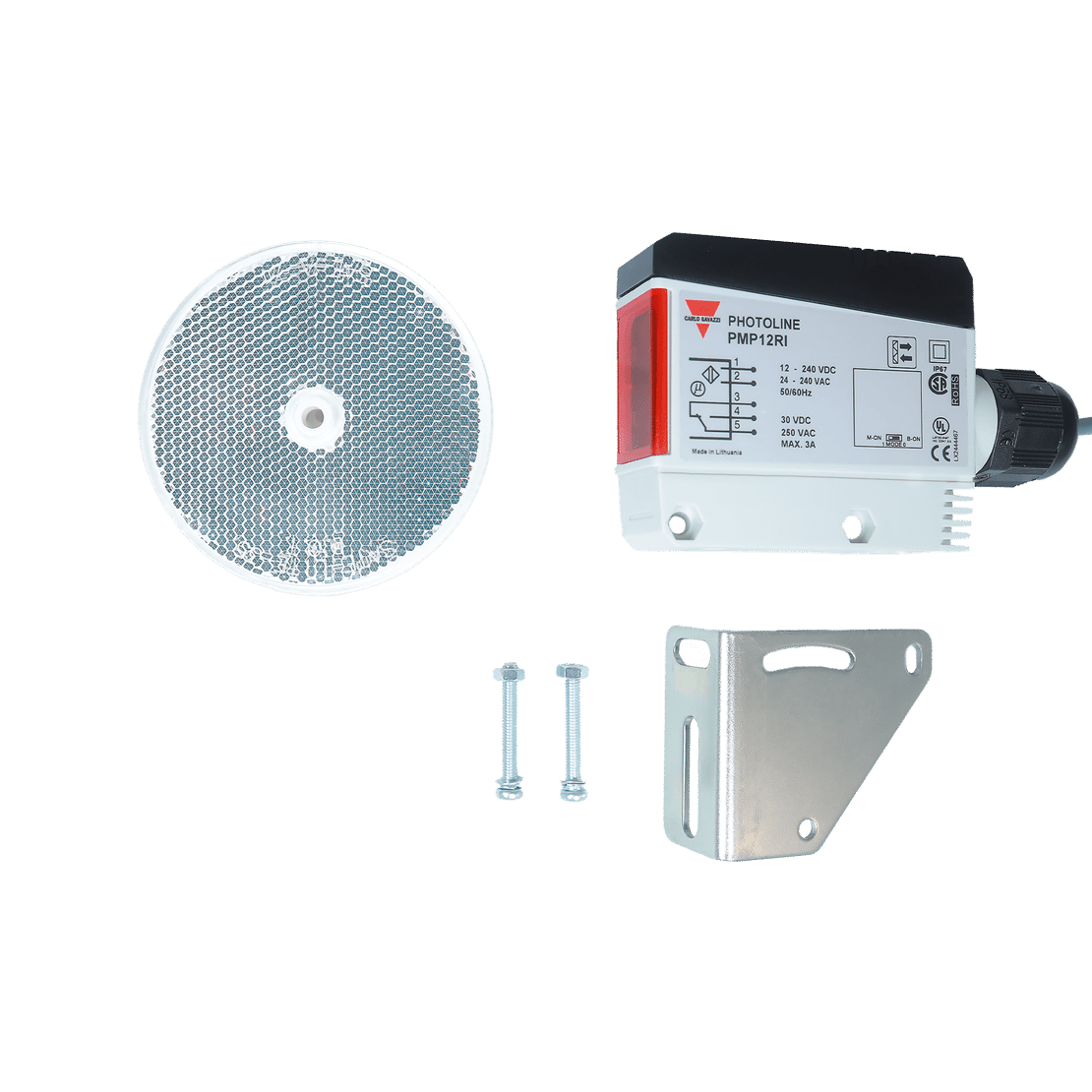

For weather-resistant applications, iControls recommends an upgrade. Standard PULSE operator motors are rated IP44, and could be vulnerable to water ingress. Furthermore, reflective photo-eye sensors can be affected by condensation on the reflector, preventing reliable operation in such conditions.

To ensure uninterrupted performance, our cost-effective weather‑resistant upgrade seals ingress points on the motor junction box and includes a NEMA 4X through-beam sensor in place of a reflective photo-eye.

To order the weather-protect option, add the suffix "-WP" to the door operator part number.

Weather-Protect Option

To order the weather-protect option, add the suffix "-WP" to the door operator part number.

Reliable & Precise Encoder

Mounted inside the gearbox, the encoder enables easy limit setup and flexible left or right-side mounting. It supports advanced door functions including soft start/stop, dual open limits, and motion monitoring. If the door stops mid-cycle, the encoder detects the issue and halts operation to prevent further damage.

Specifications

Power

180V DC motors available in: 2 and 3 HP

Voltage

208V – 600V AC, 1Ph or 3Ph

Safety Standards

UL 325 Compliant for commercial applications

Compatible Door Types

Springless sectional
Springless rolling steel
Springless folding

Duty Cycle

Continuous duty

Mounting

Left, right hand, or mid-shaft

Warranty

2 years or 1 million cycles warranty against manufacturing defects

Model Selection Chart

Information in metric system available on request.
Please contact sales for details.

Model No.	Motor (HP)	Gearbox			Max Output Torque		Cable Length 'YY' (ft)
Model No.	Motor (HP)	Shaft Size (in.)	Gearbox Size	Gearbox Ratio	N-m	lb-in	Cable Length 'YY' (ft)
PDC-400HD-300-1.5-60/105-YY	3	1 1/2	105	60:1	750.7	6,644	10, 15, 20 or 25
PDC-400HD-200-1.5-80/105-YY	2	1 1/2	105	80:1	656.8	5,813.5	10, 15, 20 or 25
PDC-400HD-200-1.5-100/105-YY	2	1 1/2	105	100:1	616.6	5,457.6	10, 15, 20 or 25
PDC-400HD-300-2-60/130-YY	3	2	130	60:1	1,206.4	10,677.8	10, 15, 20 or 25
PDC-400HD-300-2-80/130-YY	3	2	130	80:1	1,126	9,966	10, 15, 20 or 25
PDC-400HD-200-2-100/130-YY	2	2	130	100:1	992.0	8,779.6	10, 15, 20 or 25
PDC-400HD-300-2-60/150-YY	3	2	150	60:1	1,689	14,949	10, 15, 20 or 25
PDC-400HD-300-2-80/150-YY	3	2	150	80:1	1,541.6	13,643.9	10, 15, 20 or 25
PDC-400HD-300-2-100/150-YY	3	2	150	100:1	1,340.5	11,864.3	10, 15, 20 or 25
