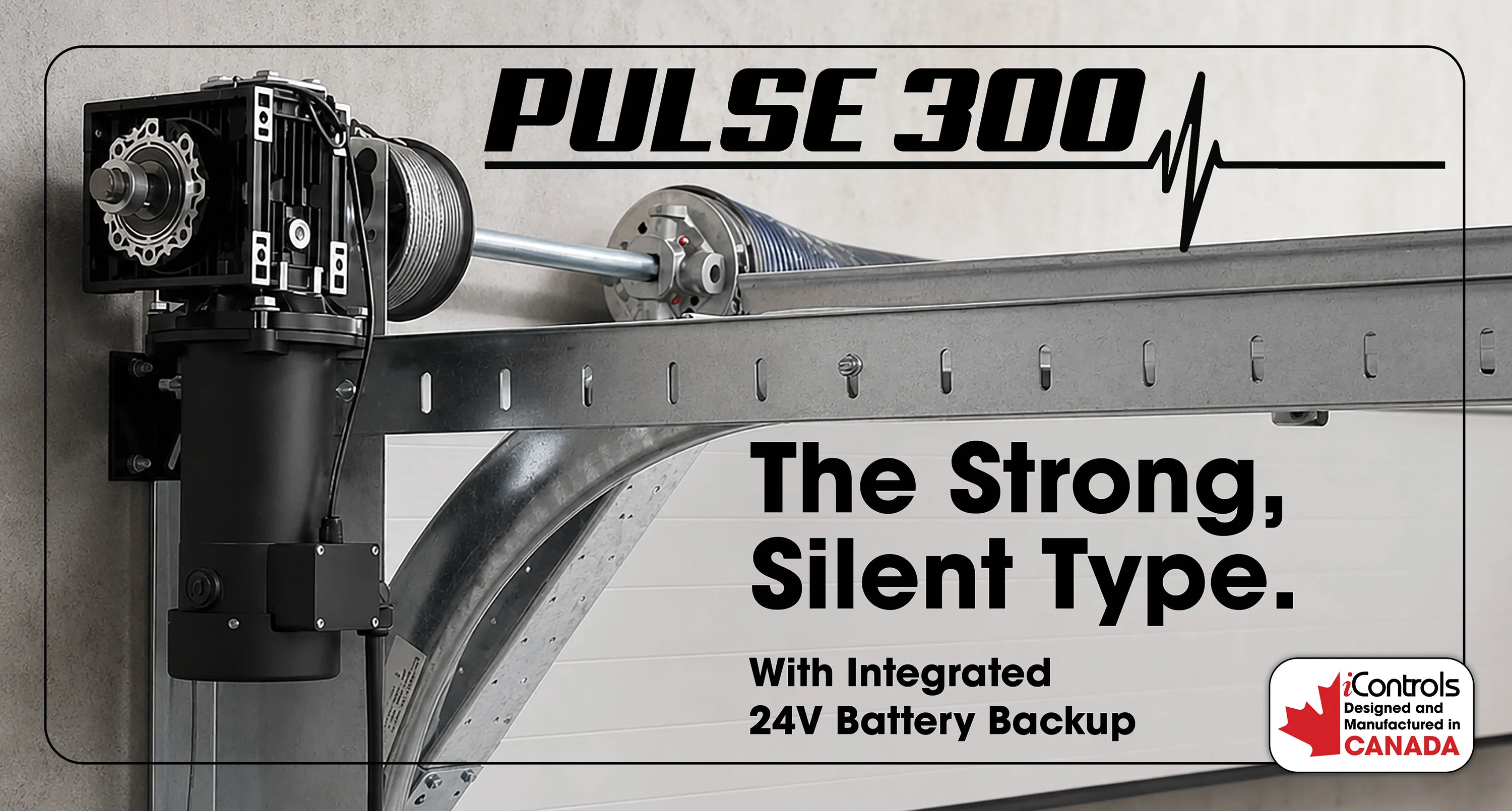

PULSE 300: The strong, silent type

When choosing an operator for a commercial overhead door, a very important consideration is whether the door is balanced or unbalanced.

A balanced door uses one or more torsion springs to counterbalance the weight of the door. This reduces the lifting force required from the operator, potentially allowing a smaller motor to be used. But this convenience comes with drawbacks. Springs are typically the first component to fail in a balanced system. A high‑quality operator, like from the iControls’ PULSE line, runs for a million cycles or more, while commercial torsion springs may last only 25,000 cycles depending on their quality. As springs fatigue, the door gradually becomes unbalanced, increasing wear, reducing performance and requiring regular service.

Commercial and industrial doors can also be designed without torsion springs. These springless systems have fewer moving parts and are ideal for applications where torsion hardware is impractical, such as folding, sliding or high‑speed fabric doors. In a springless setup, there is no counterbalance to assist with lifting. The operator must supply all the torque, which means the quality and durability of the operator are critical. This is where the new PULSE 600 from iControls delivers meaningful advantages.

The PULSE 600 is significantly more powerful than a typical commercial operator. It features a direct-drive 180V DC brake motor available in 1 ½, 2, 2 ½ and 3 horsepower-rated options. Combined with a gearbox optimized for the specific application’s desired speed, the PULSE 600 is engineered to operate springless doors reliably all day, every day.

Precise RPM‑based speed control is another key advantage. Instead of subjective speed settings like 1–5, the PULSE 600 allows users to select the exact RPM required for optimal performance. Opening speed, closing speed and the slow-speed portions of the cycle (used for soft-start/soft-stop functionality) can all be programmed for smooth and consistent operation. The available RPM range is dependent on gearbox ratio.

Universal Input Voltage is one of the most innovative features of the PULSE 600. The operator automatically adapts to a facility’s voltage, from 208–600Vac for three‑phase power or 208–240Vac for single‑phase power. This eliminates the need for stocking multiple voltage‑specific models or adding a step‑down transformer, reducing complexity and cost for any project.

With springless doors, the two forces acting on the door are gravity and the motor. Every PULSE 600 model includes an electromechanical brake motor that ensures the door stops exactly when commanded, greatly enhancing safety. An optional chain hoist is available for all configurations to provide manual operation during a power interruption.

The PULSE 600 is easy to wire and setup thanks to its intuitive floor‑level LCD control panel. It also features an electronic fully‑open sensor that removes the need for physical limits.

For any speed springless application, the PULSE 600 is the operator you need for powerful, safe, and efficient performance. Explore the full specs of the PULSE 600 or browse the rest of our PULSE lineup.

The PULSE 100 Series is the perfect solution for large-scale dock door operations. This operator comes standard with a pre-wired photo-eye and a battery backup system, ensuring reliability and convenience. Installation is straightforward and hassle-free.

Additionally, the operator includes a push-button station for easy setup and operation. The PULSE 100 Series is available in both 3/8 HP and 1/2 HP options.

Learn more about the PULSE 100 Commercial Series.

If reliable traffic control is required for your facility, look no further than the TL96 Series from iControls.

Proudly designed and manufactured in Canada, the TL96 Series features Stop and Go LED lights that are ideal for loading docks, parking garages, weigh scales, toll booths or any other facility where a dependable, bright and long-lasting LED traffic light is essential.

The TL96 LED lights are among the brightest available on the market. The ultra-bright and energy-efficient light is enhanced by optical LED lenses, ensuring visibility even in direct sunlight.

These lights are built to last. They include on-board power supplies that maintain consistent brightness, even in environments with fluctuating supply voltages. The housing of all TL96 lights is completely waterproof and resistant to long-term sun exposure.

The TL96 Series is available in both yellow and black. Each colour option includes a high-voltage (110-130Vac) and low-voltage (12-24Vac/dc) model. All TL96 lights come with a three-year warranty against manufacturing defects.

To learn more, visit our LED Stop & Go Lights page or search for "TL96 Series" on Amazon. For bulk pricing, on orders of 20 units or more, please contact iControls sales.
